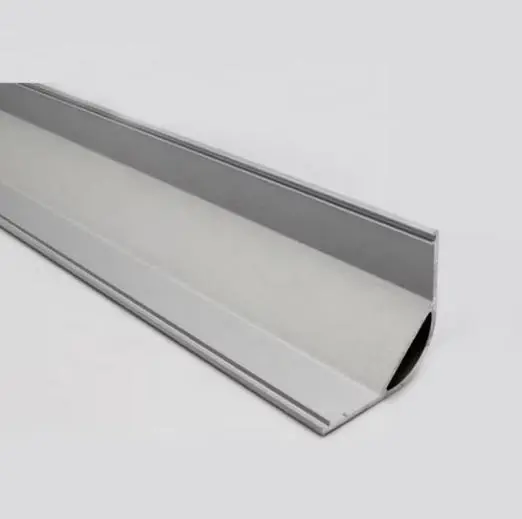

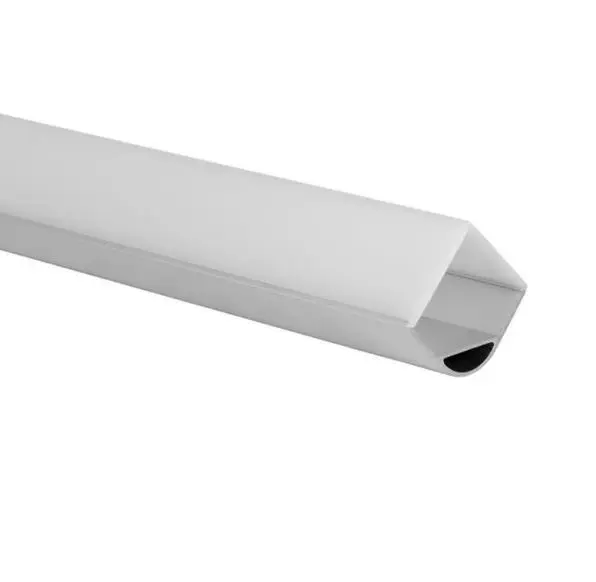

At the meeting point of industrial design and architecture, shape decides performance. A V-shaped profile might look simple, but it does a lot — from guiding precision tools to adding a clean finishing touch to buildings. When you search for “Aluminum Profile V shape”, you are probably not just looking for a piece of metal. You might be designing a linear guide for a 3D printer, finding weather-resistant trim for a skyscraper, or building a sliding system for industrial machines.
As part of BRILLIANCE, with over 21 years of hands-on experience, Hhalum understands this completely. Our supply chain, based in Guangdong and Shanghai, lets us turn any V-shape idea into a finished industrial part that meets strict standards. This guide walks you through custom V-profiles, how they are used, and what to look for — helping you find the right fit for your project.
Meet the V-Family: From Standard Slots to Special Angles
V-shape profiles are not just one product. They are a family with different jobs. Here are the main types:
V-Slot (V Groove Profiles): Made for automation. The precise V-groove fits perfectly with V-wheels. It is widely used in linear motion systems for 3D printers, CNC machines, and linear modules. Hhalum makes V-Slot from 6063-T5 aluminum alloy, giving you great straightness and smooth, burr-free grooves. This keeps your equipment accurate.
V-Channel (Guides & Tracks): Often found in conveyor guides, sliding door tracks, or medical slides. The focus is on wear resistance and smooth movement.
V-Trim (Decorative & Edge Trim): A star in construction and decor. Used for curtain wall fins, tile edge strips, elevator door frames, furniture edges, and even curtain rods. The clean V-line gives a modern look. Hhalum offers finishes from silver anodizing to PVDF coating and wood marble grain, matching any architect’s color vision.
Why Aluminum? The Material Benefits for V-Shapes
Choosing aluminum for your V-profile is a win-win for both engineering and style:
Lightweight but Strong: Aluminum is about one-third the weight of steel. This makes it ideal for weight-sensitive fields like aerospace, auto, bikes, and 3C/5G devices. And with T5 or T6 heat treatment, it gets plenty strong for structural jobs.
Great Corrosion Resistance: Its natural oxide layer, or a boosted anodize finish, lets it handle tough spots like marine/shipbuilding and outdoor solar mounting.
Top-Notch Finishing: Aluminum takes finishes beautifully. Whether it’s high-grade medical profiles or stylish furniture and cabinet profiles, Hhalum’s Multiple Surface Treatment Processes can give you the exact look and feel you want.
Easy to Work With: It is simple to cut, drill, bend, and connect with other parts. This makes assembly and installation quick.
Deep Customization: How to Turn a “V” Concept Into Your Exclusive Profile
For B2B buyers, “v shape aluminum profile” often means “non-standard” and “custom”. As a source factory, Hhalum offers a complete service, from drawing to finished part:
1. Need Analysis & Drawing Check: This is where we start. Share your design (PDF/DWG files) or a sample. Our engineers check the cross-section — wall thickness, overhangs, etc. — to avoid die issues or bending later. Whether you need a special angle for tent profiles or a sealing groove for shower room profiles, we can tailor it.
2. Die Making & Sampling: After we confirm the drawing, we make the die. Hhalum has its own die shop, so we respond fast. We then run a sample and check it strictly to make sure it’s exactly what you wanted.
3. Extrusion & Heat Treatment: We use modern presses to keep the size steady and consistent. Then we do T5 or T6 heat treatment to give the profile the right strength — whether it’s for load-bearing architectural profiles or complex equipment profiles.
4. Precision Machining & Finishing: After extrusion, we can do precision work like cutting to length, drilling, and punching. Finally, we offer one-stop finishing: anodize (silver, black, bronze), powder coating (any RAL color), electrophoresis, and wood marble grain. Your product will look as good as it performs.
Case Studies: Two Typical V-Profile Uses
Case 1: High-Precision V-Slot for 3D Printers (Industry 4.0)
A European startup making 3D printers needed a V-rail that was perfectly vertical, moved smoothly, and had zero wobble. Hhalum suggested our standard V-Slot 20×20 profile. We checked straightness strictly (under 0.5mm per meter) and ensured the groove was smooth. It worked perfectly with their V-wheels. The startup’s printers became known for their accuracy and stability.
Case 2: V-Trim for Modern Curtain Walls (Architectural Style)
For a super-tall building project in the Middle East, the architects wanted champagne-gold V-trims to break up the glass and add some shade. Hhalum custom-made V-shaped decorative profiles to their drawing, with a special angle and length. We used PVDF coating to handle the strong UV rays and big temperature swings. The final V-trims not only looked great but also helped with the building’s energy efficiency.
3 Reasons to Work With a Source Factory
In the global supply chain, choosing Hhalum (BRILLIANCE) means choosing reliability and efficiency:
1. Cost Control: We have our own die shop and extrusion lines. We control costs from the start, cutting out middlemen. This means competitive prices for you. Check our Agency Policy for partnership details.
2. Quality You Can Trust: From door & window profiles to curtain wall profiles, from whiteboard profiles to aerospace profiles — our 21 years of experience have built a strict quality system. Every profile we ship is checked for size, hardness, and surface finish. See our End-to-End Service & Guarantee System.
3. Flexibility & Fast Response: With two supply bases (Guangdong and Shanghai), we respond quickly to inquiries and small trial orders. We fit your project timeline. Browse our Latest Catalogue or check out Application Cases.
Whether you need a standard V-Slot for a prototype or a unique V-trim for a landmark building, Hhalum delivers one-stop solutions — from die development to final finish.
[Take Action Now] Upload your drawing, or talk to our engineers about your V-shape project. Let our 21 years of experience lay the foundation for your next innovation. You can also request a Sample Acquisition Message, watch our Video Page, or download technical Product Documentation.
FAQ: Quick Answers About V Shape Aluminum Profiles
What alloys do you use most for V-profiles?
We mostly use 6063-T5. It extrudes well and takes finishes nicely, which is great for V-Slots and decorative trims. If you need higher strength, we can also do 6061 or 6063-T6.
What is the MOQ for a custom die?
For new dies, we usually accept small trial orders — like 1 ton or a specific number of pieces. This lets you test the market or validate your project without a huge commitment. Our Customized Processing Service is designed for flexibility.
How straight are your V-Slot profiles?
Our standard straightness is within 0.5mm per meter. For applications needing even higher precision, just let us know. We can also provide Aluminum Machining and CNC Parts for further processing.
Can you bend or weld V-profiles for complex shapes?
Yes. We offer secondary services like bending and welding. Just tell us what you need, and our team will advise on the best approach to keep the profile strong and looking good. We can also do brushed or polish finishes.
